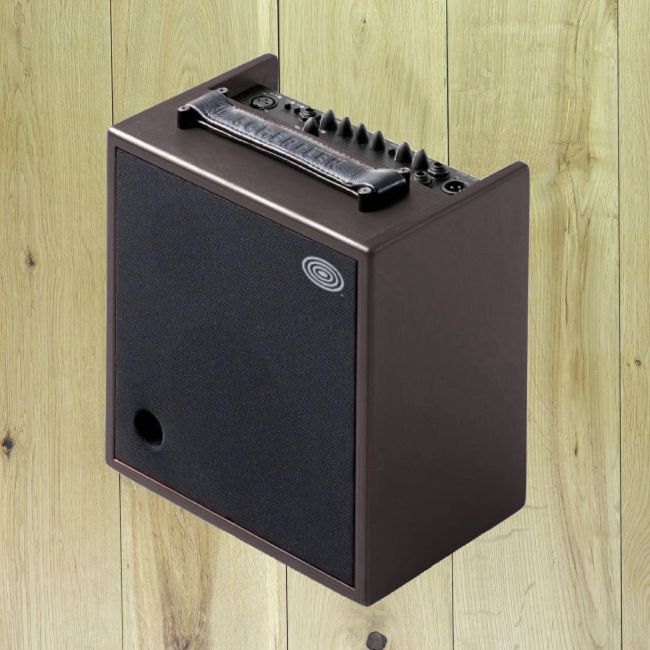

GIULIA X represents the state of the art in Swiss amplifier design, reflecting all the needs of the user. Offering a significantly improved power amp and speaker section, together with a crossover filter network, limiter and gain, this amp provides 70W (108dB SPL) of bi-amplified analog power. GIULIA X has a coaxial speaker system with a 1” dome tweeter and 5.5” woofer. It is designed with an optimized 2-way bass reflex construction.
GIULIA X is ideal for those seeking no-compromise acoustic instrument amplification, while keeping things small and simple. Perfect for practice and home studio use, it is also recommended as a high-quality preamp in venues, connected to Front Of House via the DI Out. The two inputs can accept one instrument and a vocal microphone.
SCHERTLER amps feature a high-end Class-A preamp with no integrated circuits and No Negative Feedback.
Made in Switzerland.
| Weight | 7.5 kg |
| Dimensions (LxDxH) | 27 x 18 x 28 cm |
| Frequency Response (@ +/-3dB) | 55 to 20kHz |
| Sensitivity (1W/1m) @1 kHz | 92.5 dB |
| Power | 70 W pure analog power amp |
| SPL Max | 108 dB |
| Speakers | Coaxial 1” dome tweeter, 5.5” woofer |
| Construction | 12mm birch BB laminated |
| System - Format | Two way, bi-amplified - Bass reflex |
| Mic In connector | XLR |
| Mic In sensitivity | -52 dB |
| Mic In impedance | 4.7 kΩ |
| Instrument In connector | 1/4" jack unbalanced |
| Instrument In sensitivity | -47 dB |
| Instrument In impedance | 820 kΩ |
| Stereo In connector | n.a. |
| Stereo In sensitivity | n.a. |
| Stereo In impedance | n.a. |
| Insert | On master |
| Line Out connector | 1/4" jack |
| Line Out level | 0 dBu |
| Line Out impedance | 200 Ω |
| DI Out connector | XLR |
| DI Out level | -15 dBu |
| DI Out impedance | 200 Ω |
| Aux Out connector | n.a. |
| Aux Out level | n.a. |
| Aux Out impedance | n.a. |
| Phones connector | n.a. |
| Phones level | n.a. |
| Phantom Power (nominal) | 24 VDC |
| Stat Power (10 VDC) | Yes |
| Effect | Spring-type digital reverb |
| Preamp | Class-A, no negative feedback, no integrated circuits |
| Footswitch | n.a. |
| Stand mounting | n.a. |
| Manufacturer | Schertler |
|---|---|
| Model | Giulia X |
| Condition | New |
