Earn 1065 points for this item

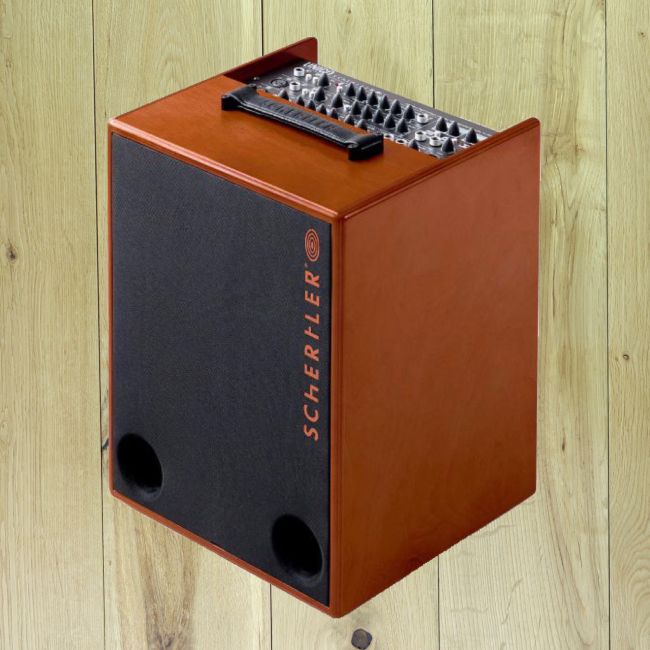

UNICO is a 5-channel amplification system that offers 250W (120dB SPL) of bi-amplified analog power. Equipped with a 1” dome tweeter and 10” woofer, it is designed with a 2-way bass reflex construction.
Ideal for acoustic instruments in both live performance and studio situations, UNICO also makes a good crossover amp for electric guitars. The five inputs can accommodate a variety of different setups, including an effect loop via the Aux Out.
SCHERTLER amps feature a high-end Class-A preamp with no integrated circuits and No Negative Feedback.
Made in Switzerland.
| Weight | 14.2 kg |
| Dimensions (LxDxH) | 34.2 x 32.6 x 43.8 cm |
| Frequency Response (@ +/-3dB) | 50 to 20 kHz |
| Sensitivity (1W/1m) @1 kHz | 97 dB |
| Power | 250 W pure analog power amp |
| SPL Max | 120 dB |
| Speakers | 1” dome tweeter, 10” woofer |
| Construction | 12 mm birch BB laminated |
| System - Format | Two way, bi-amplified - Bass reflex |
| Mic In connector | XLR |
| Mic In sensitivity | -52 dB |
| Mic In impedance | 4.7 kΩ |
| Instrument In connector | 1/4" jack unbalanced |
| Instrument In sensitivity | -47 dB |
| Instrument In impedance | 820 kΩ |
| Stereo In connector | 1/8" jack stereo |
| Stereo In sensitivity | -10 dBu |
| Stereo In impedance | 40 kΩ |
| Insert | On master |
| Line Out connector | 1/4" jack |
| Line Out level | 0 dBu |
| Line Out impedance | 200 Ω |
| DI Out connector | XLR |
| DI Out level | -∞ to +6 dBu |
| DI Out impedance | 180 Ω |
| Aux Out connector | 1/4" jack unbalanced |
| Aux Out level | 0 dBu |
| Aux Out impedance | 200 Ω |
| Phones connector | n.a. |
| Phones level | n.a. |
| Phantom Power (nominal) | 24 VDC |
| Stat Power (10 VDC) | Yes |
| Effect | Spring-type digital reverb with decay |
| Preamp | Class-A, no negative feedback, no integrated circuits |
| Footswitch | n.a. |
| Stand mounting | Flange mount ø 36 mm, h=102 mm |
| Manufacturer | Schertler |
|---|---|
| Model | Unico |
| Condition | New |
