Volume: Controls the effect make up gain and volume of the effect.
Vibe: Controls the depth of modulation of phase shift. Min anti-clockwise and max clockwise.
Crazy: Controls the speed of modulation of phase shift, slow anti-clockwise and fast clockwise
Pulse: Controls the feedback around the phase shifting network. Min anti-clockwise and max clockwise (most resonant).
Voodoo: Controls the starting point of modulation, interacts with ‘Crazy’ and ‘Vibe controls. set 50% as a starting point.
·

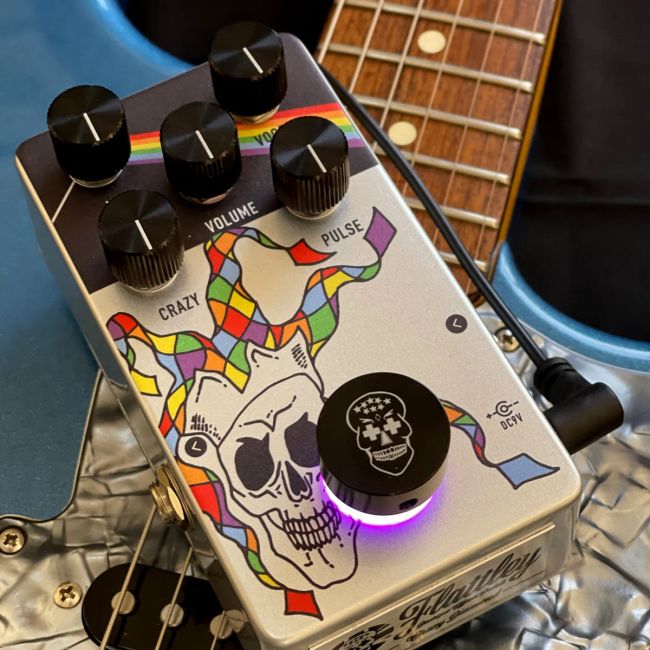

The Crazy Diamond comes in a 125B Enclosure (LxWxD):
119x64x40mm (including lid) (4.69 x 2.52 x 1.57 inch)
·
Standard negative centre, -9v dc tip power supply
unit/power brick required
·
No internal 9v dc battery function.
Current consumption 40mA
·
15mm anodised aluminium control knobs
·
Purple halo light ring installed
·
The Crazy Diamond comes with a black custom etched aluminium
foot topper
·
This edition comes in silver and multi coloured
graphics.
All our pedals are handmade, hand wired, boutique custom guitar and bass
pedal effects manufactured in the UK using only the highest quality components ensuring
every aspect of our pedal’s build process results in a truly outstanding
product.
All Flattley “Silver Range” pedals are hand processed in our Flattley paint shop. They are etch primed first to ensure that the primer bonds to the aluminium enclosure which also provides an anti-corrosive protection layer. Multiple coats of base coat primer applied, the silver base coat colour is then applied and topped off with several coats of lacquer. Once the lacquer is hardened, it is then hand polished to achieve the smooth deep lustre finish that is inherent in all Flattley Guitar and Bass effects pedals. The graphics designed in house by our graphics designer Phoebe Flattley are applied to “Silver Range” effects pedals by UV direct printing in our printing shop.
