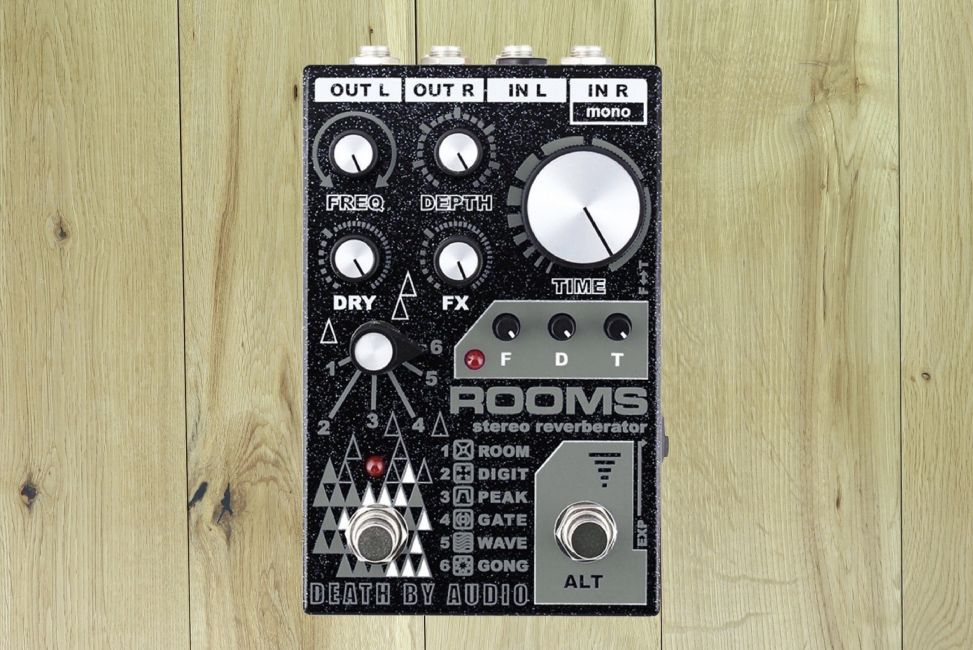

Death By Audio Rooms Reverb

CONTROLS

FREQ: Controls the frequency parameter of the current mode.

DEPTH: Controls the depth parameter of the current mode.

TIME: Controls the reverb time in all modes.

DRY: Controls the volume of the dry signal, from -inf to 20x gain.

FX: Controls the volume of the reverb signal, from -inf to 20x gain.

ALT: Engages the ALT mode, switching between two sets of controls. When active, FREQ is controlled with the F knob, DEPTH with the D knob, and TIME with the T knob. Additionally, the ALT mode turns on expression control of either FREQ or TIME using the F<->T Switch on the side of the pedal. NOTE: Expression control ONLY works in ALT mode and when an expression pedal is plugged in.

SPECIFICATIONS

Dimensions: 5.95" x 3.86" x 2.96" (including hardware).

Weight: 18 oz.

Power: 80 mA, 9V (runs on a standard 2.1 mm negative center 9V adapter).

Expression Pedal: Almost any expression pedal will work with ROOMS. When not plugged in, the controls work as normal. NOTE: Expression control ONLY controls the F or T knobs when ALT mode is engaged and when an expression pedal is plugged in.
