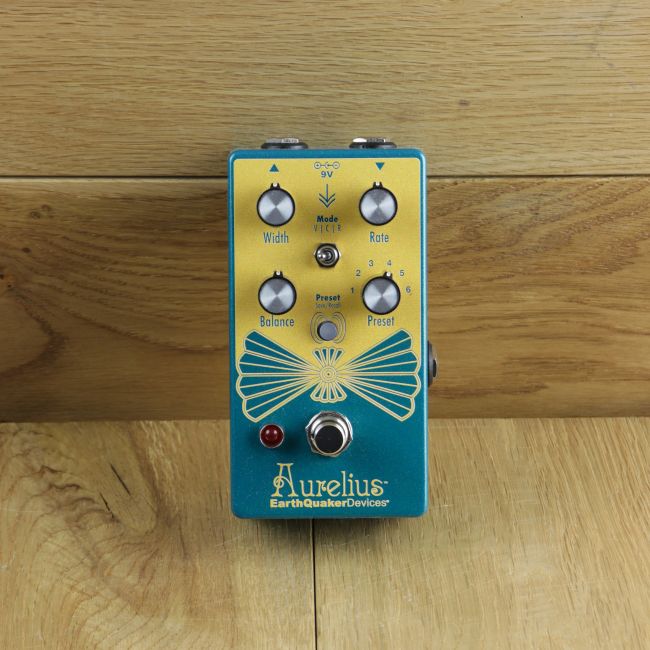

This is not your run of the mill chorus pedal. This compact, beautifully cased wonder is a three-voice chorus with six programmable presets and expression control. Choose from Vibrato Mode, Chorus Mode, and Rotary Mode and manipulate their Width, Rate, and Balance to achieve your ideal sound. Shift seamlessly from one mode to another to cop a blend that is all your own. One simple tap of the Preset (“Save/Recall”) switch and you can summon up to six settings of your choosing at will.
Inspired by the 1970s CE-1 Chorus Ensemble pedal, this digital unit has been tirelessly tweaked and fine-tuned to give you an all-encompassing chorus and vibrato experience like nothing else. And by popular demand, we’ve equipped this with an expression control so you can use any TRS expression pedal to manipulate the Width, Rate or Balance. Put it in Vibrato Mode and you’ll have a really subtle chorus with a seasick vibrato and alternate quickly between the two seamlessly. And that’s only one mode. The possibilities are endless.
Main Features:
• Tri-voice Chorus/Vibrato/Rotary Speaker Emulation effects pedal
• Inspired by the vintage 1970s CE-1 Chorus Ensemble pedal and the 1940s Leslie rotating
baffle speaker system
• 3 effects modes
• V - traditional chorus/vibrato effect with triangle LFO modulating a short delay line
• C - blend of chorus and flanger with more warmth and slower rates and a sine wave LFO
• R – Rotary Chorus effect modeled after the sound of a Leslie speaker cabinet - combines both amplitude and frequency
modulation for a doppler effect
• 2 modes of operation:
• Live Mode – Green LED- pedal will operate exactly where the controls are set, any changes will have no effect on the
presets unless saved
• Preset Mode - red LED - recalls stored settings for each control, actual control settings will be ignored
• 6 easily user-editable and accessible preset slots
• Silent soft-touch relais-based switching with True Bypass
• Flexi-Switch Technology for latching and momentary operation
• EXP jack expression pedal or Voltage control pedal control over any parameter
• All-analog dry signal path and digital effect signal path
• Made in Akron, Ohio, USA
• Powered by regular 9 V DC PSU
(centre -, 2.1 mm, 75 mA current draw)
This mode is a familiar traditional chorus type effect that leans towards vibrato with a triangle LFO modulating a short delay line. When the Balance control is turned fully clockwise, the dry signal is removed and the effect becomes a pitch vibrato.
Width
Controls the amplitude of the LFO and determines how wide the pitch modulation will sweep.
Rate
Adjusts the speed of the LFO.
Balance
In Mode V, the Balance control adjusts the amount of pitch modulation that is blended in with the dry signal. When the Balance control is turned fully clockwise, the dry signal is removed and the effect becomes a pitch vibrato.
Mode C is a blend of chorus and flanger. It has more warmth and slower rates than Mode V and uses a sine wave LFO to modulate the delay line. The Width control plays a major role in this mode and determines which type of modulation is more prominent.
Width
Controls the amplitude of the LFO and determines how wide the pitch modulation will sweep. Higher Width settings have a more pronounced flanging effect. When the Width control is turned past the center point, feedback is gradually added and makes the flanging effect more prominent.
Rate
Controls the speed of the LFO.
Balance
In Mode C, the Balance control adjusts the level of the modulated signal. Turn clockwise for a more pronounced effect.
Mode R is a rotary chorus effect modeled after the sound of a Leslie speaker cabinet. This effect combines both amplitude and frequency modulation for a Doppler effect.
Width
Controls the amplitude of the LFO and determines how wide the pitch modulation will sweep. Lower settings accentuate the lower “woofer” frequencies and higher settings accentuate the upper “horn” frequencies.
Rate
Controls the speed of the LFO.
Balance
In Mode R, the Balance control adjusts the wet/dry balance of the signal. Turn clockwise for a more pronounced and pulsing sub frequency effect.
Aurelius has two operating modes which are indicated by the color of the Save/Recall switch LED. In Live Mode, the pedal will operate exactly where the controls are set and any changes will have no effect on the presets unless saved. In Preset Mode, stored presets are selected using the Preset switch, and the physical settings of the controls will be ignored.
Aurelius has six available preset slots for you to save and recall your favorite settings. The settings for each of the three controls, the Mode switch and the expression jack assignment can be saved and recalled in any of the slots.
Use any TRS expression pedal to take control over the Width, Rate or Balance! Different EXP assignments can be saved in each preset. You can also use Control Voltage with the EXP jack. The CV range is 0 to 3.3v.
| EAN | 0810019913334 |
|---|---|
| UPC | 0810019913334 |
| Manufacturer | Earthquaker Devices |
| Model | EQD-AURE |
| Condition | New |
