Have a growing rig? Ojai is part of an expandable system. Gain more outputs by connecting additional Ojai units to the 24V Thru jack.
Never run out of outputs.
Is your pedalboard growing?
Gain more outputs by connecting additional Ojai units to the 24V Thru jack. Or use Ojai to add five more outputs to our Zuma power supply (sold separately).
Ojai is part of a truly expandable, modular power distribution system that can grow with your pedalboard.
Hear your pedals, not your power.
Many popular guitar pedals were originally designed to work with batteries. Since batteries are inherently very low noise and not susceptible to ground loops, these pedals often were not designed to be resistant to noise from power supplies.
Our ultra-low-noise design prevents power noise from bleeding into the audio signal, allowing your pedals to deliver the highest possible dynamic range.
Playing gigs all around the world? No need to purchase separate power supplies for your international tour.
Ojai has automatic worldwide power compatibility built-in (when connected with the appropriate IEC cable).
Whether you’re on 120V, 240V, 100V, or any variation in between, Ojai will deliver clean, reliable power to your pedals, even if the venue has dirty power.
Ojai’s all analog circuitry offers two stages of isolation.
Each of the five output channels is individually isolated from the 24V DC, and the 24V DC is isolated from the AC input power, eliminating ground loop and AC line noise issues.
Ojai also provides dual power regulation: Wide-bandwidth optically isolated feedback loops on each channel, as well as on the input, allow both the input and outputs to adjust for changes, ensuring solid output under changing load conditions.
Don’t let the blue chassis fool you: Ojai is green at heart.
Significantly more efficient than linear power supplies, Ojai is able to deliver substantially more current while handling a much wider range of input voltages.
Ojai’s high efficiency design delivers high-current power distribution in a compact unit, for a small carbon footprint and a small pedalboard footprint.

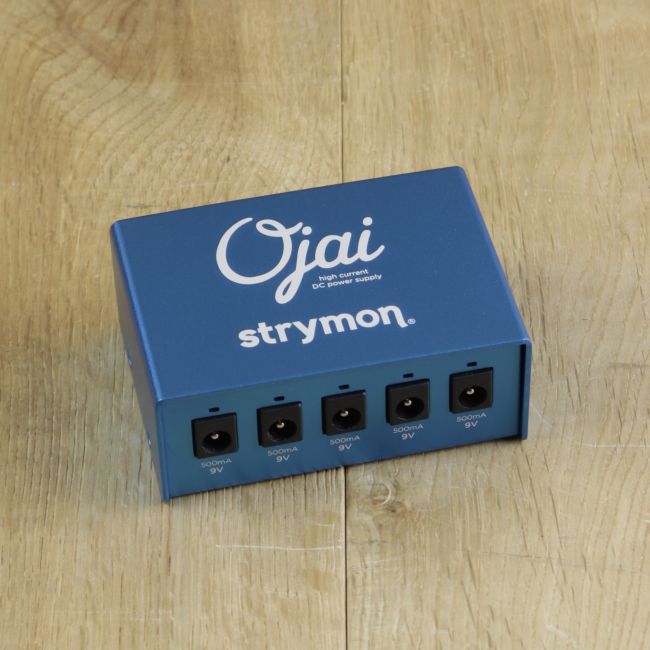

- 5 high-current, fully isolated 9V outputs with center-negative polarity
- 500mA per output powers nearly any pedal
- 5 pedal cables included (5.5mm x 2.1mm barrel connectors, right angle to straight)
- 24V power adapter (PS-124), EIAJ-05 power adapter cable, and IEC cable included
- 24V Thru jack allows connection to additional Strymon Ojai (sold separately)
- 5 individual custom transformers (one per channel) deliver clean, consistent power
- Worldwide power compatibility ensures no-hassle international touring
- Energy efficient, compact design
- Lightweight and rugged anodized midnight blue aluminum chassis
- Fits under nearly any pedalboard
- Designed and built in the USA
What are the dimensions and weight of Ojai?
Ojai dimensions: 3.2″ x 2.3″ x 1.3” (81mm x 58mm x 33mm)
Ojai weight: 4.7 oz. (133g)
Ojai power adapter dimensions: 4.2″ x 2.15″ x 1.25” (107mm x 55mm x 32mm)
Ojai power adapter weight: 4.7 oz. (133g)
When Ojai units are linked together, how many pedals can I power?
This depends on the current draw of the connected pedals. Ojai can power 5 outputs at a full 500mA load. Most pedals consume far less than 500mA, so this means that we can link Ojai units together and still have current available to power more than 5 pedals. A likely scenario would be to link 2 or 3 Ojai units together, powering a combination of 10-15 high and low current draw pedals.
How can I mount Ojai to my pedalboard?
Ojai is incredibly lightweight, and can be mounted to the top or bottom of most pedalboards using only VELCRO® or Dual Lock™. You may also choose to mount the included 24V power adapter in the same fashion.
