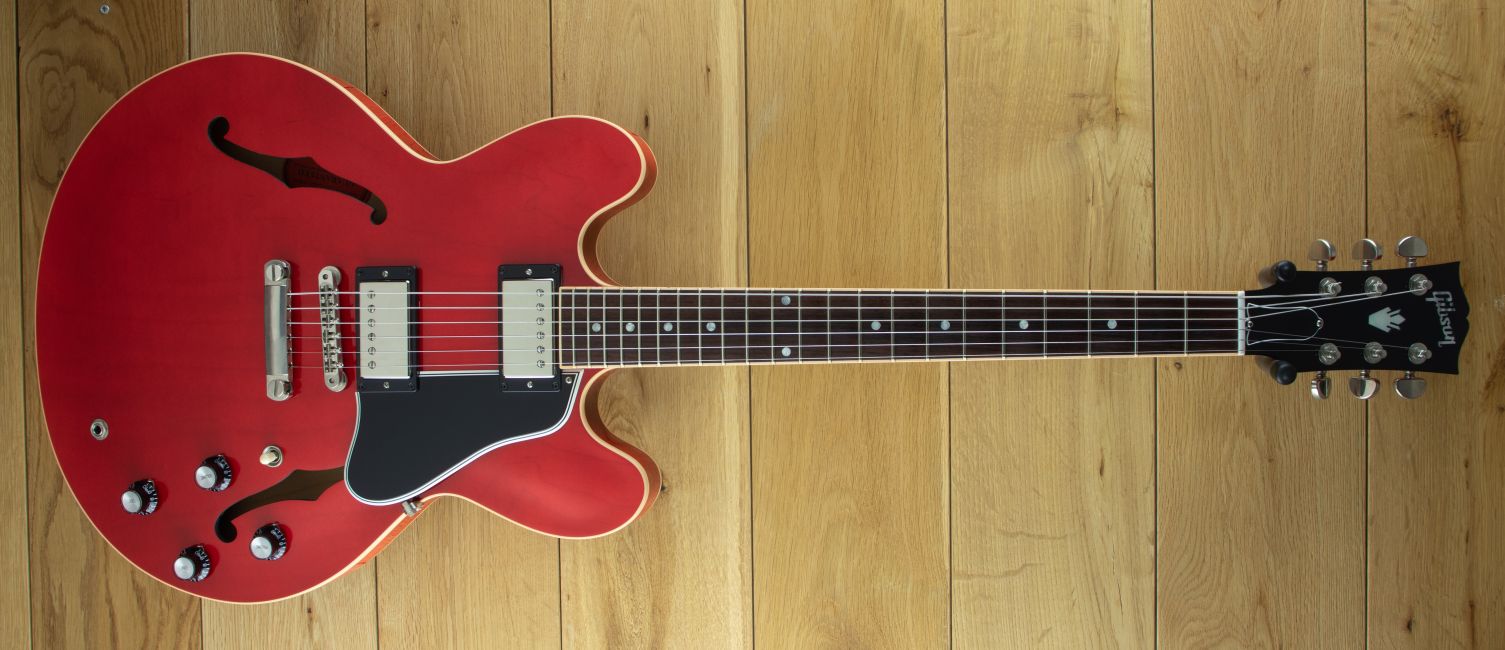

Gibson Memphis ES335 Plaintop Cherry in great condition for it's age with just a few very small marks here and there but nothing bad or unsightly.
Semi-acoustic construction
Since 1958 the "semi" has proved itself richly toneful while retaining excellent sustain and good feedback reduction
Small-block elegance
Capturing the desirable look of the ES-335 of the early to mid '60s
Redesigned neck
By redesigning the dimensions, Gibson Memphis has improved the strength and playability of the new ES-335's necks
Historic truss rod
Our historic truss rod has no tube, a proven known to enhance the guitar's resonance and sustain
Burstbucker pickups
Burstbucker 1 & 2 pickups are made in the image of the hallowed PAF humbucker, with a little extra power in the bridge position
Titanium saddles
Durable titanium bridge saddles enhance sustain, presence and clarity
Locking stopbar tailpiece
A locking stopbar tailpiece improves vibrational transfer to maximize sustain
High-gloss nitro finish
Gibson Memphis has mixed more vintage-correct finish colors, all hand buffed to a high sheen
Body: Classic semi-hollow construction with solid center block
Fingerboard: Rosewood with small block inlays
Neck: Redesigned dimensions for improved strength and feel
Truss rod: Historic truss rod
Pickups: Burstbucker 1 & 2
Bridge: ABR-1 with titanium saddles
Tailpiece: Locking stopbar
Finish: High-gloss nitrocellulose lacquer in more accurate vintage colors
Wood Species: Maple, Poplar, Maple
Pieces: 3-Ply
Grade: Plain
Binding: Cream
Back
Wood Species: Maple, Poplar, Maple
Pieces: 3-Ply
Density: Plain
Binding: Cream
Rims
Species Wood: Maple, Poplar, Maple
Pieces: 3-Ply
Grade: Plain
Weight
Average Weight (body only): 2.1069 kg / 4.645 lbs
Materials Used
Glue: Franklin Titebond 50
Etc.: Maple centerblock, Spruce braces, Mahogany rim liner
Tonal, Resonant, and/or Technical Effect: The soundwaves resonate within the hollow airspace of the Maple veneered Body, around the F-holes, and throughout the solid glue joints.
Body Contour
Carve: ES (Semi-Hollow)
Neck
Wood Species: Mahogany
Pieces: 1
Details
Truss Rod: Historic
Profile: Rounded "C"
Thickness at Fret 1: 21.59 mm / .850"
Thickness at Fret 12: 24.13 mm / .950"
Other Materials: Assembly 65 glue
Average Weight: 544.31 g / 1.2 lbs
Peg Head
Type: SP-1
Inlay: Mother of Pearl Crown
Peg Head Binding: None
Logo: Mother of Pearl "Gibson"
Silkscreen: None
Headstock Angle: 17 degrees
Tonal, Resonant, and/or Technical Effect: The wood, construction, and headstock pitch all contribute greatly to the tone, aiding this guitar's exceptional sustain and depth, and yielding a resonance that can be felt right through the body
Neck Fit
Joint Angle: 4 degrees
Joint Angle Tolerance: 0 deg 0 min 15 sec
Type: Mortise and Tenon
Adhesive: Franklin Titebond 50
Gauges Used:
Pitch Height Gauge
Nut
Style: White
Material: Bone
Width: 4.2863 cm / 1.6875"
Slots:
E: 1.2268 mm / 0.0483 inches
A: 0.9601 mm / 0.0378 inches
D: 0.6934 mm / 0.0273 inches
G: 0.4534 mm / 0.01785 inches
B: 0.3467 mm / 0.01365 inches
e: 0.2667 mm / 0.0105 inches
Fingerboard
Wood Species: Rosewood
Pieces: 1
Shade: Medium
Fingerboard Details
Radius: 30.48 cm / 12 "
Frets: 22
Nut/End of Board: 4.2863 cm / 1.6875" @ nut, 5.2375 cm / 2.062" @ end of board
Scale: 62.865 cm / 24.75"
Binding: Cream
Side Dots (Color): Black
Fingerboard Inlays
Style: Block
Material: Pearloid
Dimensions: 19.558 mm x 12.70 mm / 0.770" x 0.500"
Average Weight: 136.0777 g / 4.800 oz
Cherry
Color Code: CH
Surface Texture: Smooth/ Hi Gloss 90 Sheen Lacquer
Filler: Natural
Sealer: 1-1.5 mils
Top: Cherry
Top Coat: Hi Gloss Lacquer/ 90 Sheen 7-8 mils
Scraped: Fingerboard Sides, Body and Nut
Pickups Rhythm Lead
Style: Burstbucker 1 Burstbucker 2
Winds/Coil: Screw side/Slug side: 5000/5200 5300/5500
Material of Wire (gauge): Enamel (42) Enamel (42)
Coil Dimensions (per coil): 6.6294 cm x 1.7272 cm / 2.61" x 0.68 " 6.6294 cm x 1.7272 cm / 2.61" x 0.68 "
Coil Material: ABS ABS
Coil Winding Process: Machine Wound Machine Wound
Pole Piece Material: Nickel Nickel
Pole Piece Position from Nut: 47.3075 cm / 18.625" 59.52998 cm / 23.437 inches
Slug Material: Nickel Nickel
Slug Dimensions (diameter x length): 4.7495 mm x 1.24206 cm / 0.187" x 0.489" 4.7495 mm x 1.24206 cm / 0.187" x 0.489"
Magnet Material: Alnico II Alnico II
Magnet Position from Nut: 48.26 cm / 19 " 58.7375cm / 23.125 "
Magnet Dimensions: 6.35 cm x 1.27 mm / 2.5" x 0.5" 6.35 cm x 1.27 mm / 2.5" x 0.5"
Polarities: Screw side is the south pole of magnet Screw side is the south pole of magnet
Cover: Nickel plated Nickel plated
Qfactor: 5.4 5.35
ResistanceDC: 7.64k ohms 7.98k ohms
Resonant Frequency: 2863 Hz 2780 Hz
Tonal & Resonant Advancements:
Historically "unmatched" coil windings for vintage PAF tone with enhanced clarity. Calibrated sets for balanced output. Historically "unmatched" coil windings for vintage PAF tone with enhanced clarity. Calibrated sets for balanced output.
| EAN | 00711106426631 |
|---|---|
| UPC | 00711106426631 |
| Manufacturer | Gibson |
| Model | ESDP16CHNH1 |
| Condition | Used |
| Weight (kg) | 3.448000 |
| Weight (lbs) | 7 lbs 10oz |
